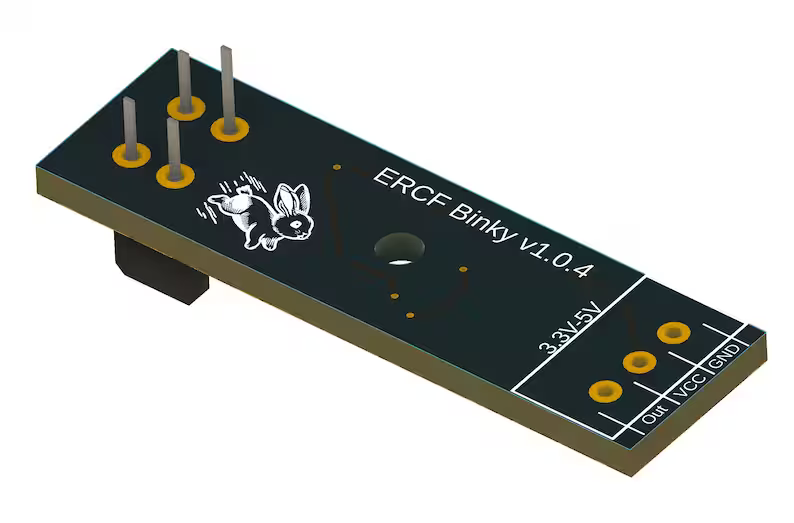

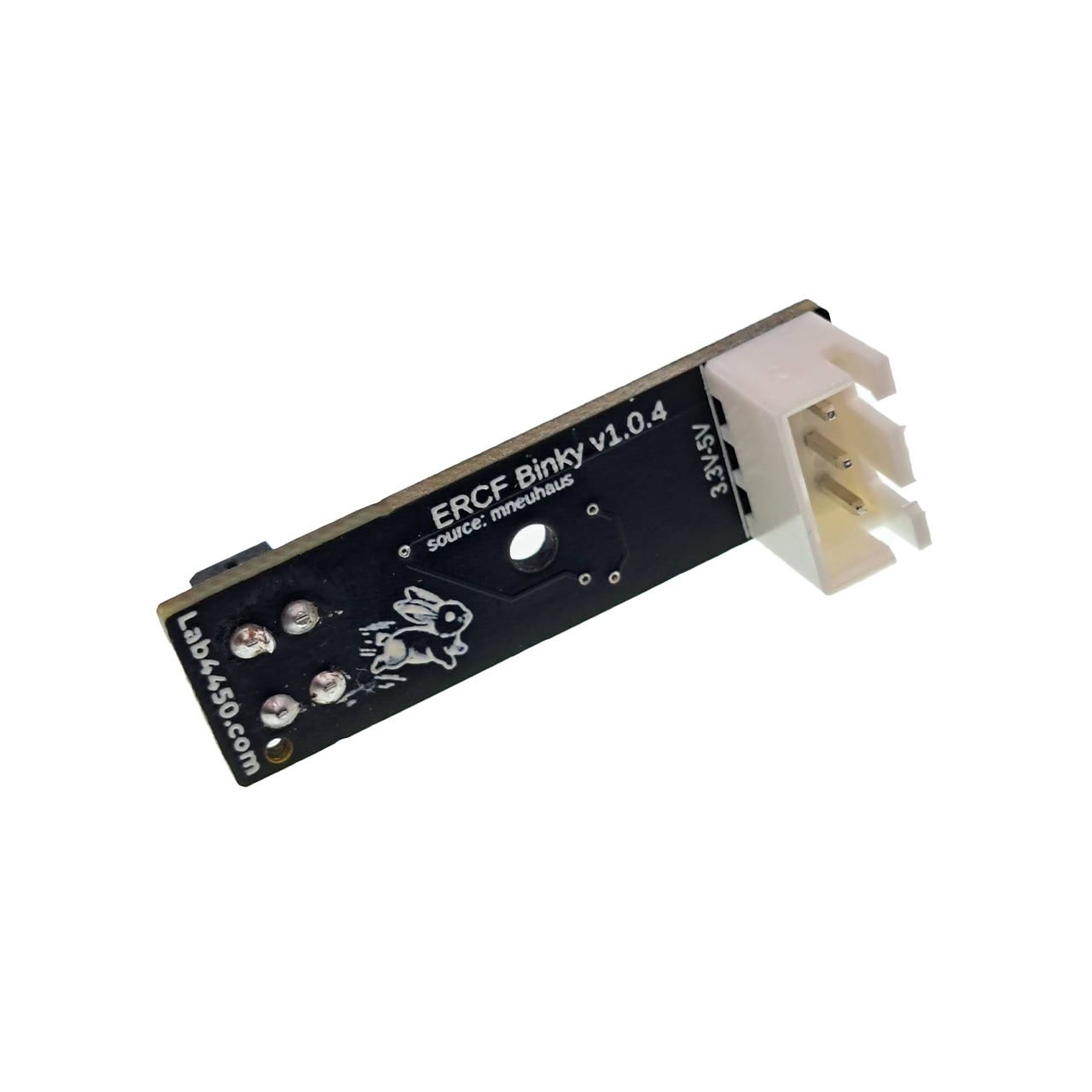

Designed and open-sourced by mneuhaus the Binky is a new and upgraded encoder for ERCF v2.
This board is an improved Filament Encoder for ERCF, designed to make your 3D printing experience a whole lot smoother. The creator of this board has taken the original TCRT5000 PCBs, analyzed the issues, and created a more reliable, headache-free alternative.
To deal with the false readings, the creator of this board added a schmitt filter to the PCB, and like the TCRT5000 boards, and also included an LED.
Included:
- Board is fully soldered with a 3 Pin JST XH connector
Optional:
- Connectors Kit: Includes female connectors, along with matching terminal crimps.
Author and credits: https://github.com/mneuhaus/EnragedRabbitProject/blob/main/usermods/Binky/
