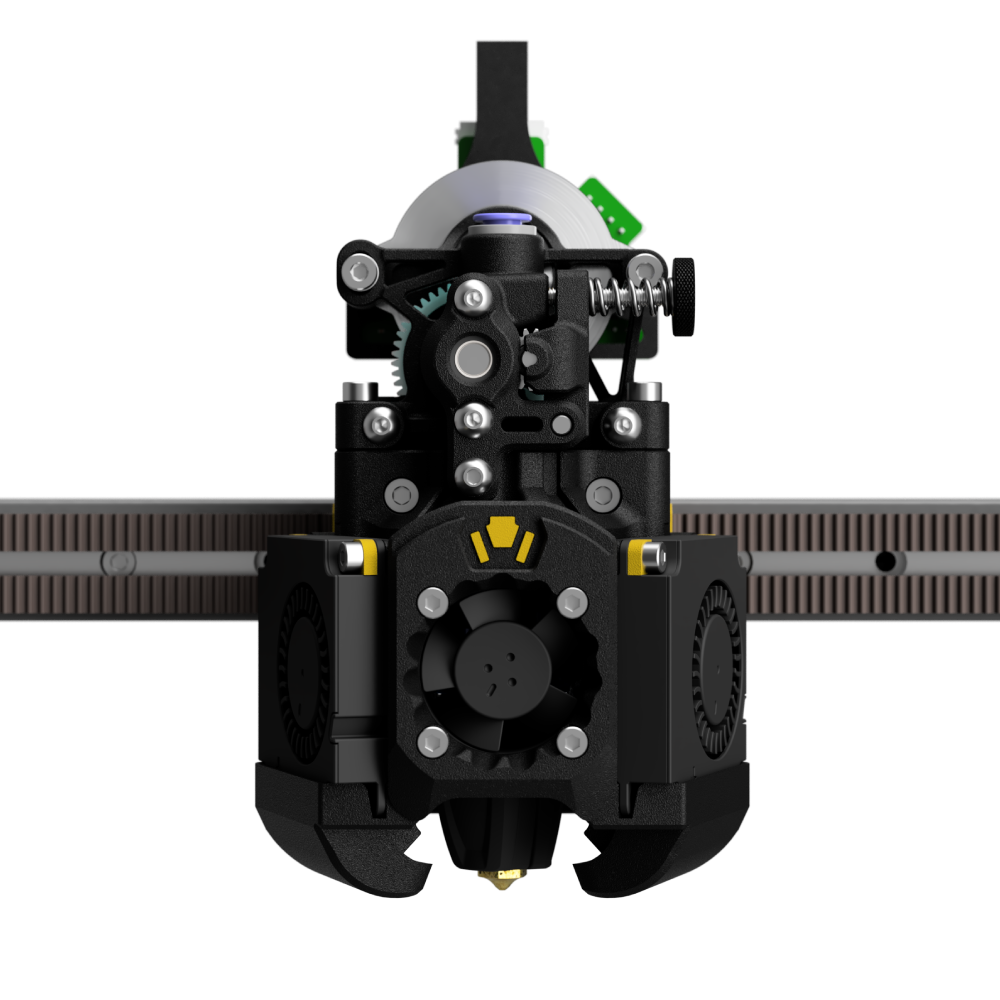

Xol Toolhead by Armchair Engineering Kit
€55,00
/
Tax included.
Shipping calculated at checkout.
10 in stock
Pickup available at suresnes shop
Usually ready in 24 hours
Myrigs3D kit includes all the hardware necessary for the carriage and toolhead of Xol Toolhead designed by Armchair Engineering (Please note that 10% of all sales go directly to supporting the project)
More info can be found at the official repo https://github.com/Armchair-Heavy-Industries/Xol-Toolhead/tree/main
| Hardware: | |
| Item Description | Quantity |
| M3x5x4 Heatset Insert | 12 |
| M2x10 Self Tapping Screw | 4 |
| M2.5×8 BHCS | 8 |
| M2.5×16 BHCS | 6 |
| M3x6 BHCS | 4 |
| M3x8 SHCS | 18 |
| M3x16 SHCS | 8 |
| M3x20 SHCS | 4 |
| M3 Hex Nut | 9 |
| M3 Washer | 4 |
| M5 Washer | 3 |
| M3x30 Pin | 2 |
| M3x20 knurled aluminium standoff | 2 |
| 22.5mm L x 4mm OD x 3mm ID Stainless Steel Tube | 2 |
| Small Cable Tie | 5 |
| 5cm of 2mm ID 4mm OD PTFE | 1 |
| Xol Led 1x RGB Neopixel LEDs, and 2x RGB Sequin LEDs (0.8mm board thickness) |
1 |
| Xol Led Diffuser in Cristal Clear Resin for the front face plate | 1 |
| Fans: | |
| Item Description | Quantity |
| GDSTime 4010 Blower Dual Ball 24v | 2 |
| Delta 2510 5v 3 Wire Fan | 1 |
