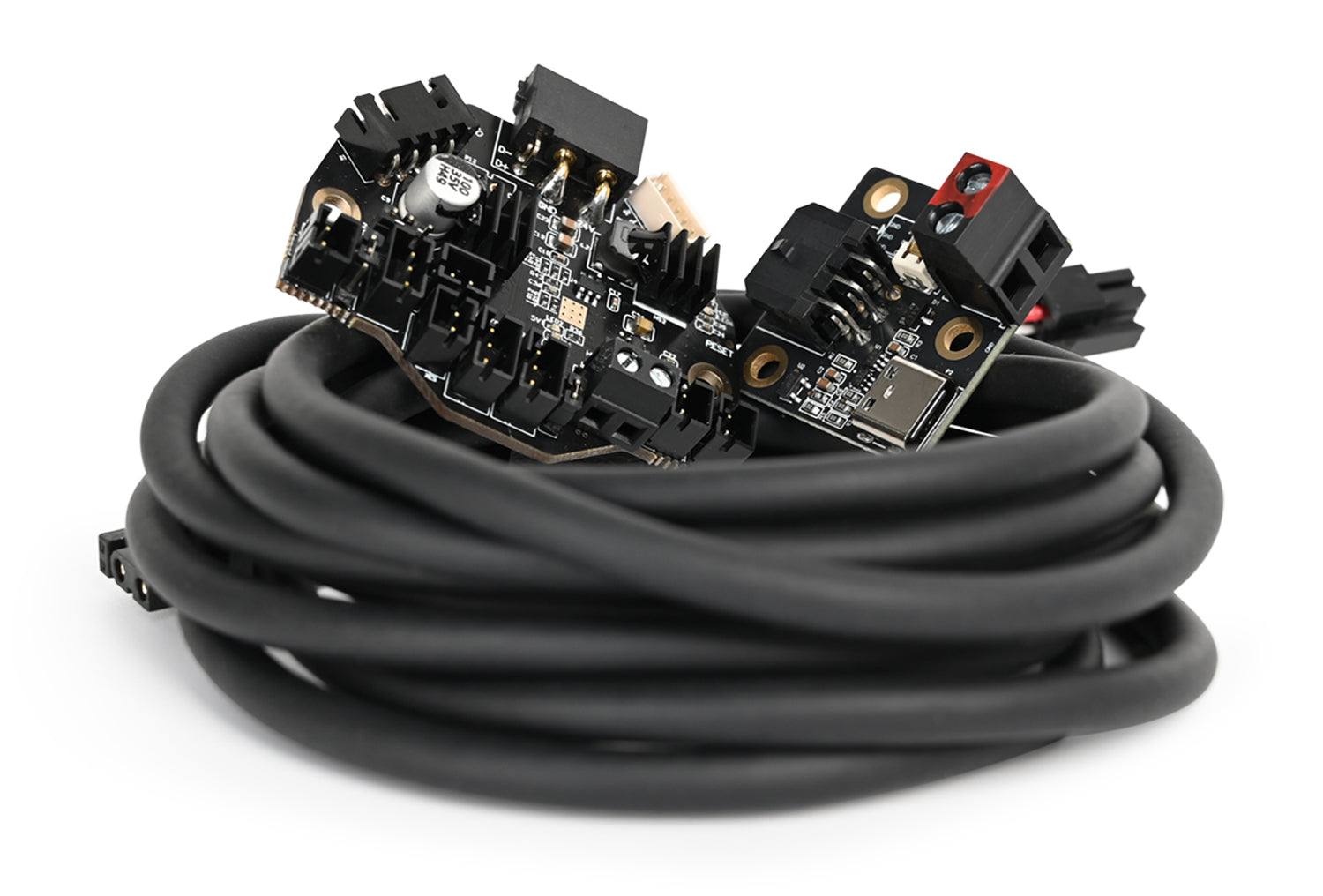

LDO Nitehawk36 Toolhead v1.4 (RevC) + Umbilical fully overmolded

€47,00
Tax included. Shipping calculated at checkout.
21 in stock, ready to ship

Pickup available at suresnes shop

Usually ready in 24 hours

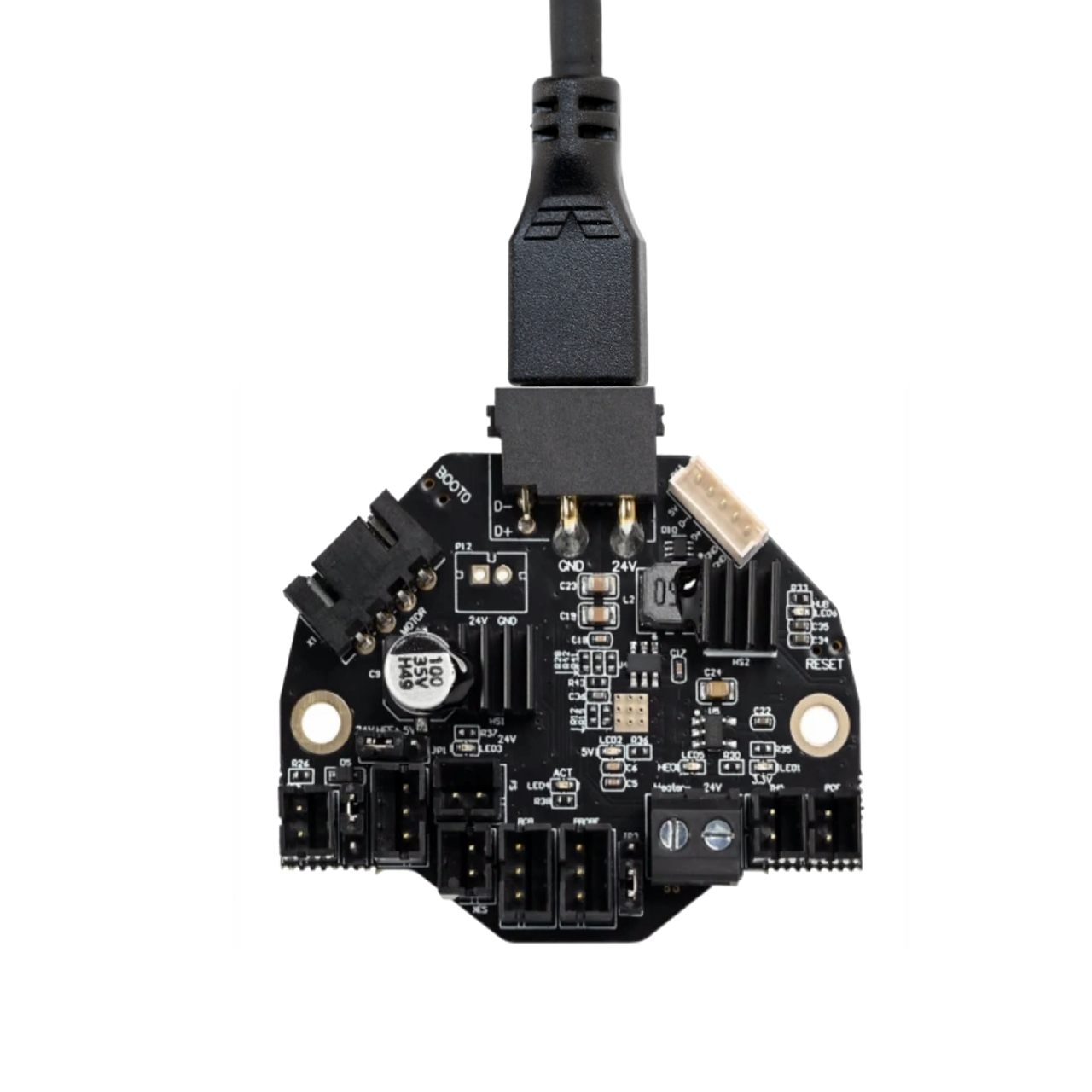

Nitehawk-36 by LDO is a toolboard featuring RP2040 MCU, TMC2209 stepper drive, ADXL345 accelerometer, and USB port. Nitehawk-36's USB based connection method allows for a simple and easy setup compared to other CAN toolboards. The USB connnection also allows for a secondary USB port to connect your nozzle webcam or eddy current probe.

Features
  • Convenient wiring, no more complicated and error prone breakout cables - nitehawk only requires 24V power and a USB connector to the RPI host.
  • USB Klipper connection, no additional software or hardware setup compared to CAN.
  • Secondary USB port, an onboard USB port allows you to connect a second USB device to your toolhead without running an additional umbilical cable.
  • Custom toolhead cable, a single combined USB data and power cable rated for drag chain use, but can also be used in umbilical configuration.
  • Convenient Input Shaping, run input shaper calibration at anytime with an onboard accelerometer.
  • Tacho enabled HEF, the hotend fan port is three pin tachometer compatible, allowing for additional diagnostics and safety.

LINK:

https://docs.ldomotors.com/en/Toolboard/nitehawk-36

https://github.com/MotorDynamicsLab/Nitehawk-36
