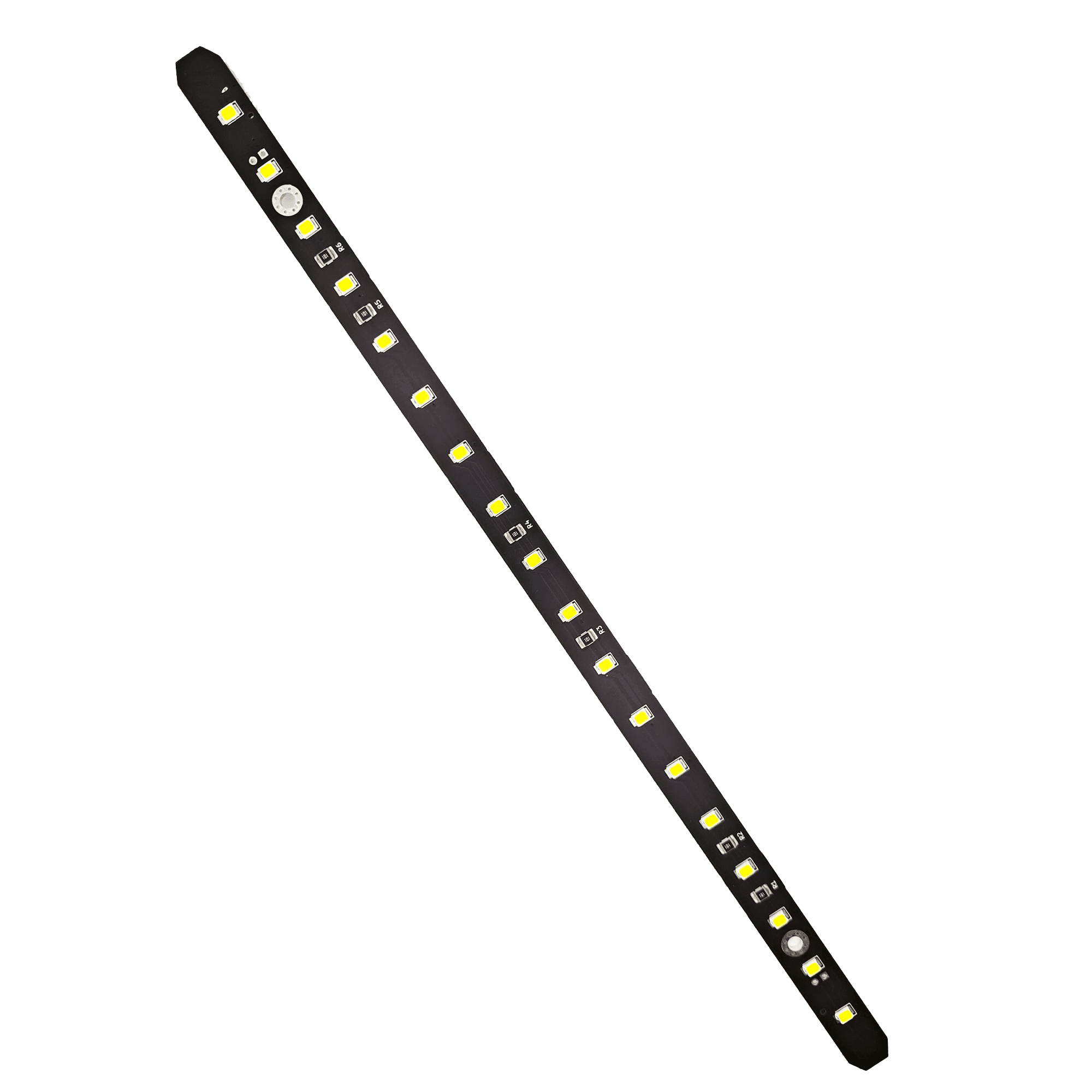

Designed and open-sourced by bartlammers aka BLAMM! the Daylight on a Stick is a chainable 24V LED bar and gives the illusion of daylight in your Voron. Great when making photo’s of your prints, or want to see the colors how they will look in the outside world.
We use 4.000k natural white or 5.000k cool white CR80 72lm LEDs according to BOM.
Each stick has around 5.5W power!
Please connect them to one of the heaters output of your motherboard!
Ideally used in a Voron V2 or VT with 250mm and 300mm size because each stick is 270mm long.
For voron V2 or VT with 350mm please check the Daylight XXL size.

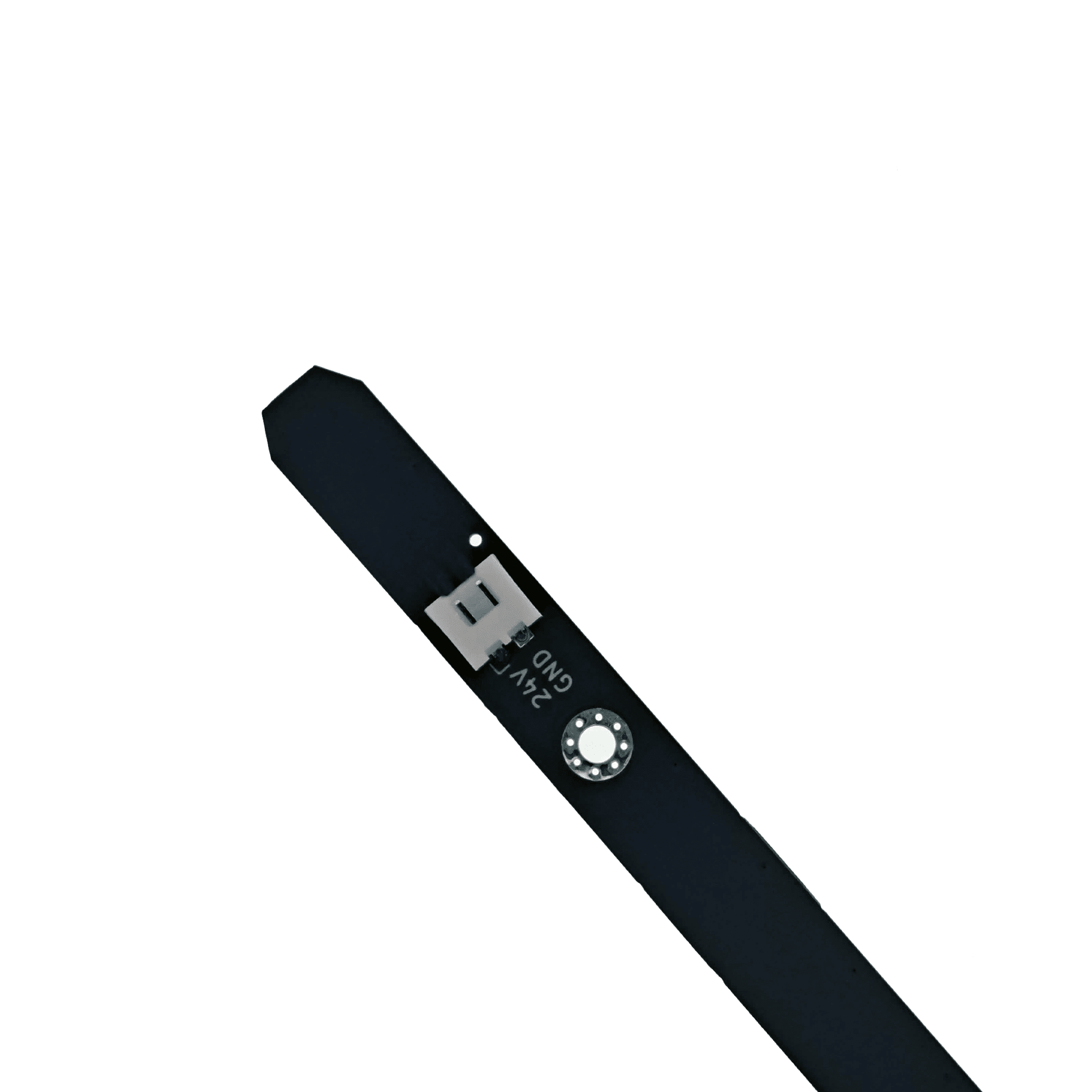

90 degree JST-XH 2.54 connectors already soldered to the LED sticks according to pictures.
Included:
- 2x LED sticks
Optional:
- 4x 2 Pin JST female connector
- around 20x terminal crimps JST XH2.54
- 8x M3x8 screw
- 4x Tnut M3
- 4x heat inserts
Confused?
| Led Colors // Voron 3D Printer Model | Voron V0 | Voron V2.4 or Trident 250mm and 300mm Bluid | Voron V2.4 or Trident 350mm Build only |
| White Color only | daylight on a Matchstick | Daylight on a stick | Daylight on a XXL size Stick |
| RGB | Rainbow on a matchstick | Disco on a stick | Disco on a XXL size Stick |
Author and credits: https://github.com/VoronDesign/Voron-Hardware/tree/master/Daylight
