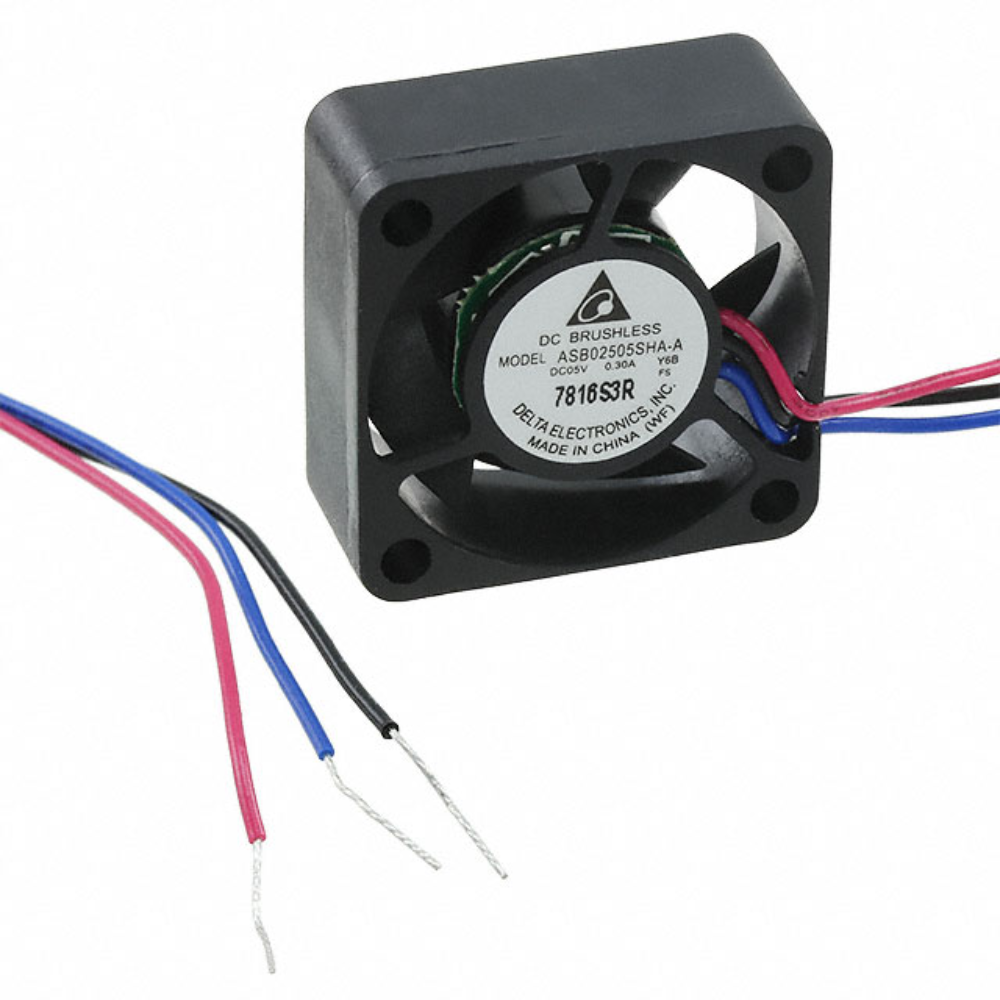

Original Delta 2510 5v Fan
Reference: ASB02505SHA-AY6B
Perfect suit for XOL toolhead
| Attribute | Value |
|---|---|
| Series | ASB |
| Part Status | Enabled |
| Voltage Rated | 5 VDC |

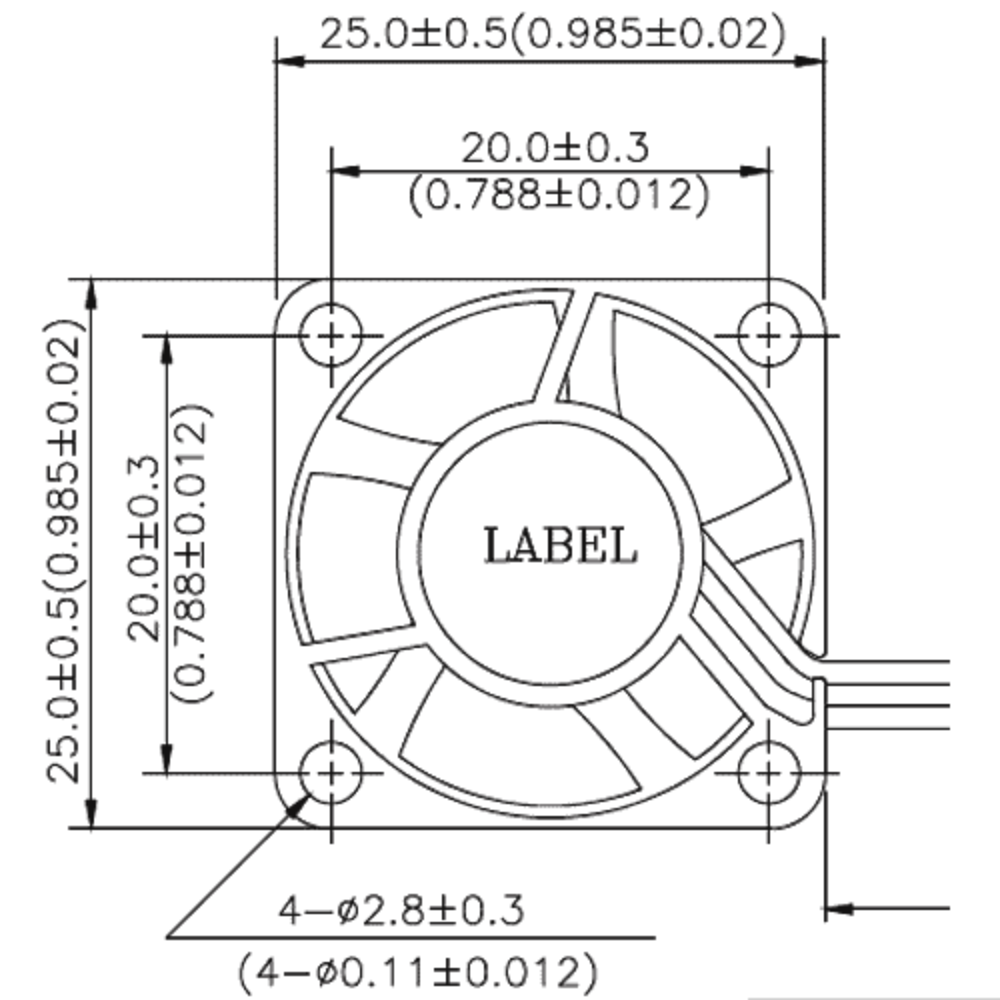

| Size / Dimension | Square-25mm L X 25mm H |
| Width | 10.00mm |
| Air Flow | 4.31 CFM (0.122 m³/min) |
| Static Pressure | 0.320 inchH₂O (8.13 mmH₂O) |
| Bearing Type | Ball |
| Fan Type | Axial |
| Features | Speed Sensor (Tach) |
| Noise | 31.0 dB(A) |
| Power (Watts) | 0.60 W |
| RPM | 10500 RPM |
| Termination | 3 wire leads |
| Ingress Protection | — |
| Operating Temperature | -10~+70°C |
| Weight | 14g |
| Current Rating | 0.12 A |
| Voltage Rating | 4.0 – 5.5 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 20000 Hrs @ 40°C |
